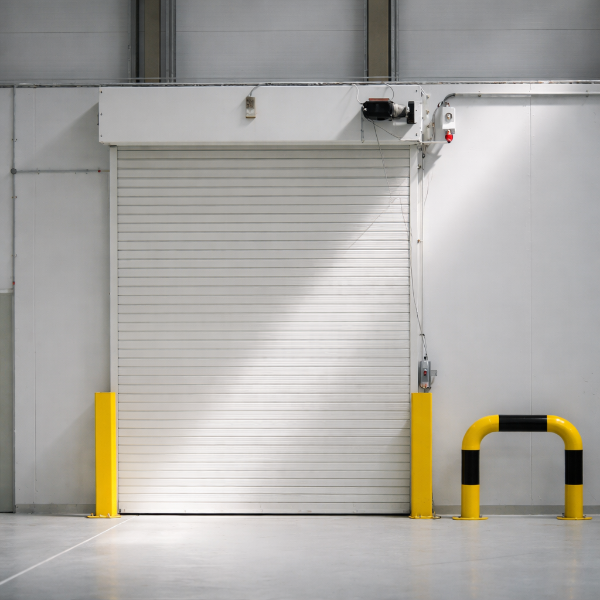

Fire Rated Rolling Shutters Doors

Name: Fire Rated Rolling Shutter and Door Manufacturer in Gujarat
Brand: SmartTec
SKU: 115
Rating: 5 (100 reviews)

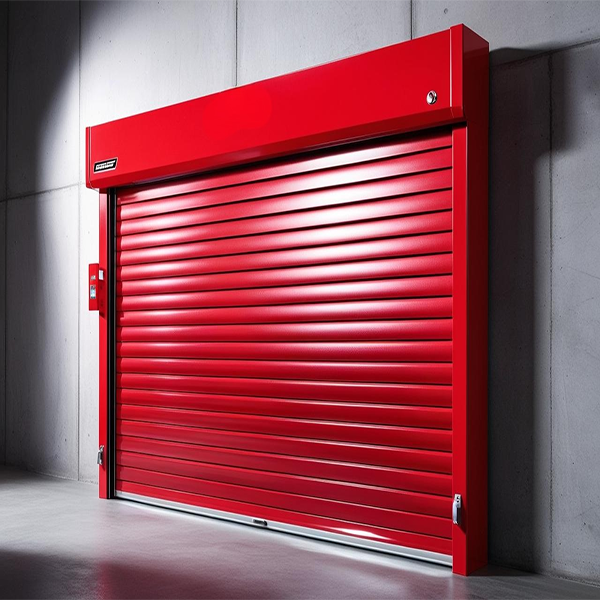

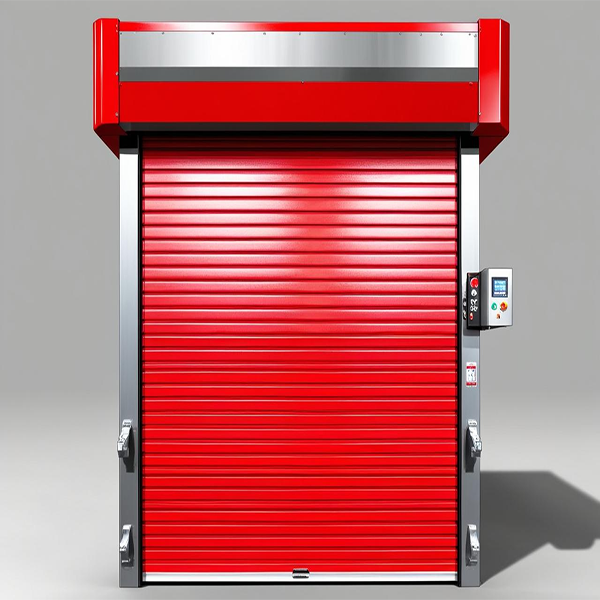

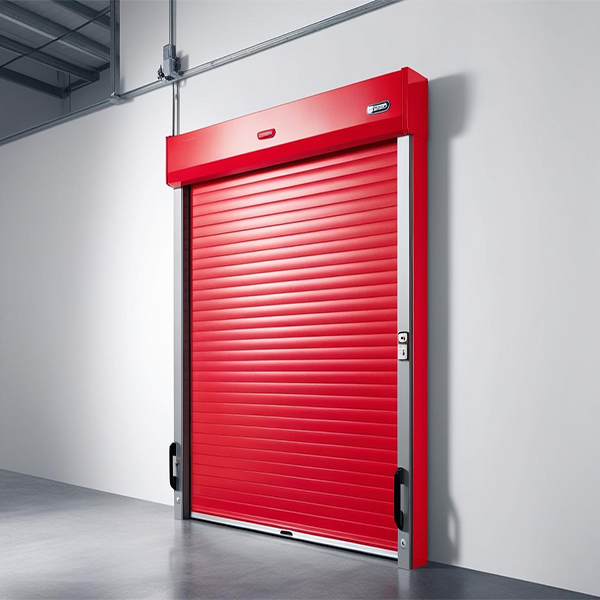

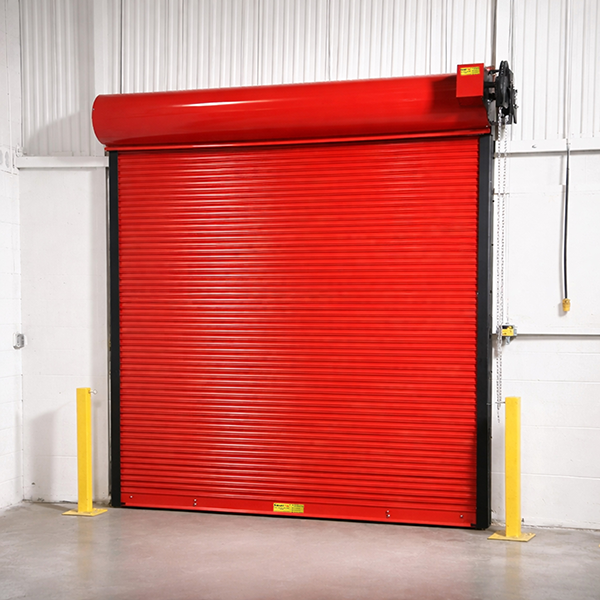

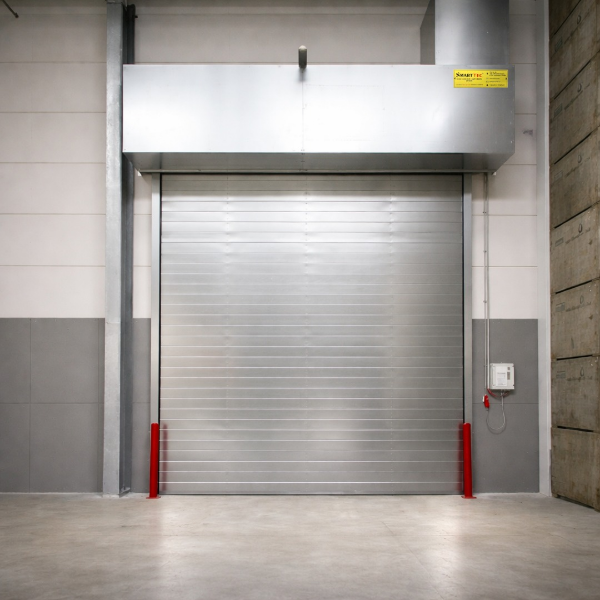

SmartTec's Fire Rated Rolling Shutter are designed to prevent the spread of fire and smoke in industrial, commercial, and highrisk buildings. SmartTec's Fire Rated Rolling shutters act as a protective barrier during fire emergencies, helping to separate areas and allows safe evacuation while minimizing Property & Human damage.

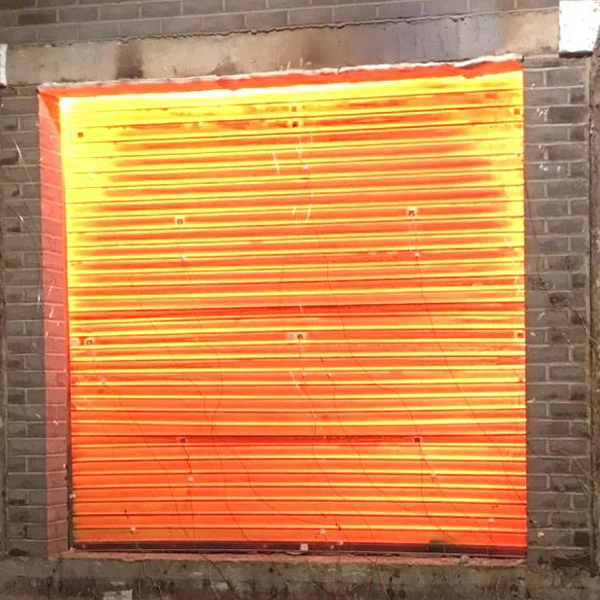

SmartTec's fire rated shutters are tested for 2-hour and 4-hour fire resistance, ensuring dependable performance under extreme temperature conditions. Built with reinforced steel construction and automatic emergency operation, they are ideal for factories, warehouses, malls, hospitals, data centers, and industrial facilities where fire safety compliance is mandatory.

Door Specifications of Fire Rated Rolling Shutter

Parameter	Specification
Product Type	Fire Rated Rolling Shutter
Fire Resistance	2 Hour / 4 Hour Tested
Curtain Material	Heavy-duty Fire-Resistant Steel Slats
Slat Thickness	As per Fire Rating Requirement
Operation Type	Motorized (Automatic Closing in Fire Mode)
Guide Channels	Reinforced Fire-Rated Steel Guides
Bottom Bar	Heavy-duty Fire-Resistant Bottom Rail
Sealing	Heat-Resistant Side & Bottom Seals
Surface Finish	Powder Coated / Industrial Finish
Installation	Internal Fire Compartment Openings

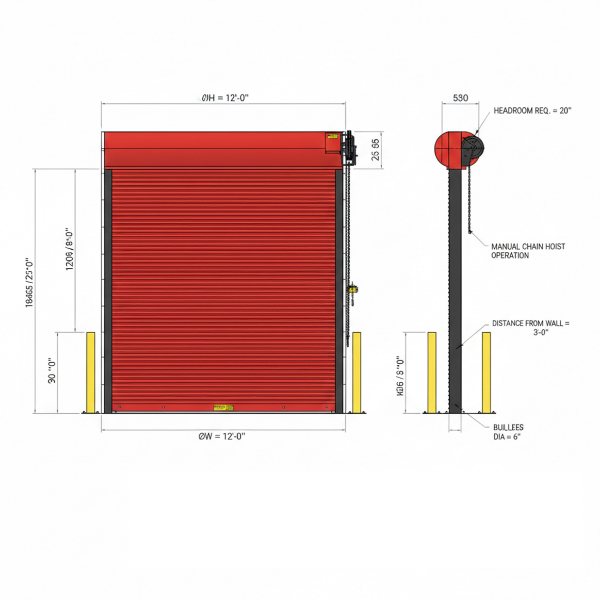

Size	Custom Made as per Site Requirement

Motor Specifications of Fire Rated Rolling Shutter

Parameter	Specification
Motor Type	Industrial Side Motor
Motor Power	1 HP – 3 HP (based on shutter size)
Power Supply	415V Three Phase
Operation Speed	Controlled Descent for Fire Safety
Duty Cycle	Heavy-duty Industrial
Limit Switch	Adjustable Open & Close Limits

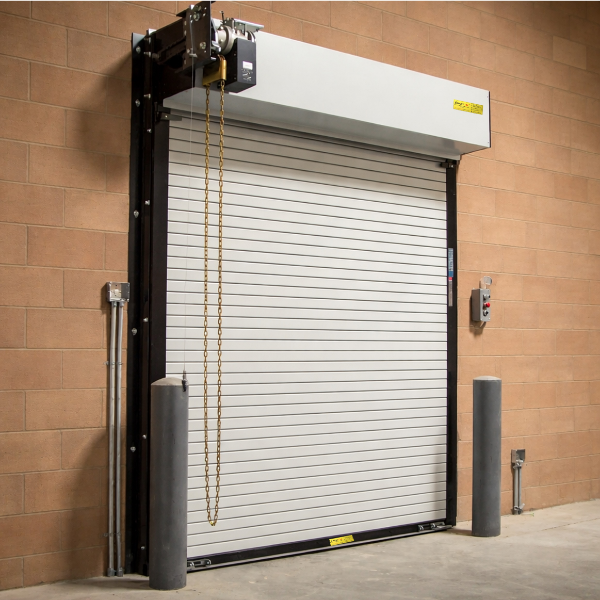

Manual Override	Chain Operation during Power Failure

Control Panel Specifications of Fire Rated Rolling Shutter

Parameter	Specification
Control Type	Fire-rated Automatic Control Panel
Operation Mode	Normal Mode + Fire Emergency Mode
Fire Alarm Integration	Compatible with Fire Alarm System
Emergency Closing	Automatic Gravity / Motor-Controlled Closing
Backup Option	Battery Backup (Optional)
Protection Rating	IP55 Industrial Enclosure
Safety Features	Overload & Short-Circuit Protection
Emergency Stop	Included
